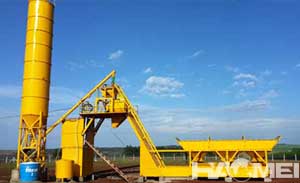

YHZS25 mobile concrete batching plant

YHZS25 mobile concrete plant

08/05/2014 Haomei mobile concrete plant 12

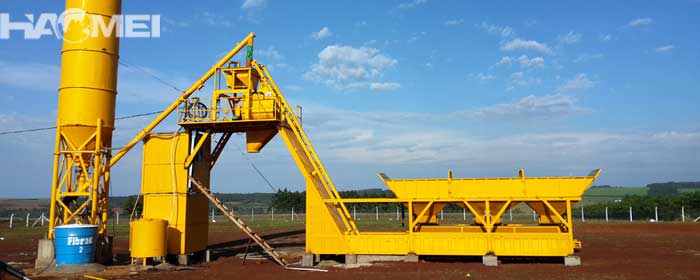

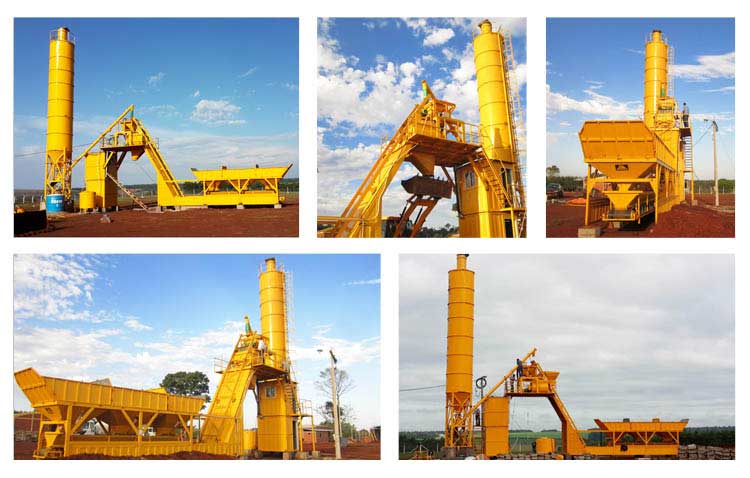

Description of YHZS25 mobile concrete plant

YHZS25 mobile concrete plant(mobile concrete batching plant) is a new type readymix batching equipment which is movable by trailing. It is uniquely and novelly designed with a simple and compact structure. One trailing unit assembles a whole working set of aggregating, weighing, conveying and mixing system, enabling it great overall mobility. By absorbing new technologies from overseas and domestic, the mobile concrete mixing plant has such characteristics as accurate weighing, homogeneous and efficient mixing, fast and clean delivery, convenient to move and operate, safe trailing, etc. YHZS25 mobile concrete batching plant is the ideal choice for projects that require frequent movement from one construction site to another.

YHZS25 mobile concrete plant produce the high quality concrete with high speed, easy be moved. Contact us for more information!

Main Technical Parameter of YHZS25 mobile concrete plant

1、 PRODUCTIVITY：25m3/h(STANDARD WORKING CONDITION)

2、 TOTAL POWER CONSUMPTION： 45kW

3、 AGGREGATE WEIGHING ACCURACY: ±2%

4、 CEMENT WEIGHING ACCURACY: ±1%

5、 WATER WEIGHING ACCURACY: ±1%

6、 ADDITIVE WEIGHING ACCURACY: ±1%

7、 PRODUCE CYCLE:72 SECONDS

8、 CONTROL MODE: CENTRALIZED CONTROL BY PLC, FULL AUTO. SEMI-AUTO AND MANUL SELECTION.

9、 MIXED MATERIAL DISCHARGE HEIGHT: 2800mm

OVERALL SIZE: ABOUT 15m×4m, MAIN MACHINE: 12.6m LONG x 2.2m WIDTH x 5.5m HEIGHT

WEIGHT OF WHOLE MACHINE 19T

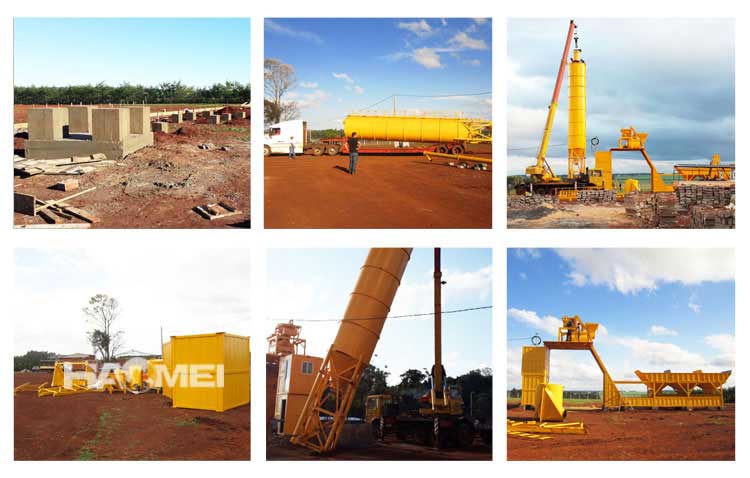

Installation of YHZS25 mobile concrete plant

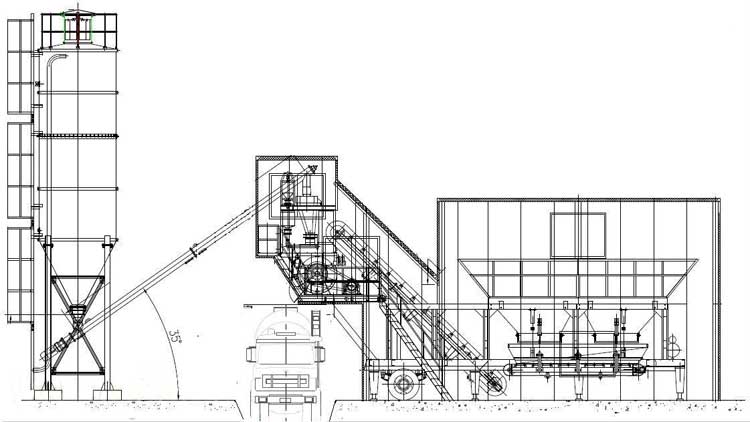

General layout of YHZS25 mobile concrete batching plant

Features of YHZS25 mobile concrete plant

Compact Structure and Complete Function Plant of this model is a combination of storing, weighing, transporting, mixing and controlling. It has featured of compact structure and complete function.

Convenient Movement Adopt pulling type, special structure enables convenient movement.

Quick Installation s Ready to run without normal foundation and commissioning, which can save installation and commissioning time.

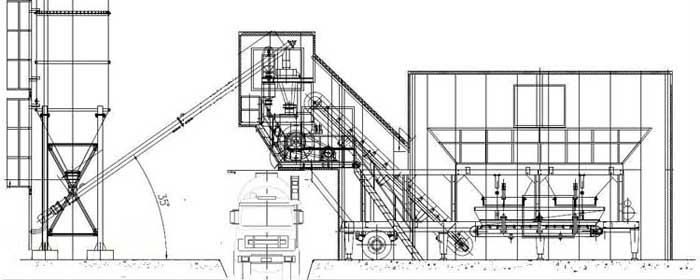

General layout of YHZS25 mobile concrete plant

Please note of YHZS25 mobile concrete batching plant

1. The total power doesn't include the power of cement screw;

2. Non-standard design could be made according to clients' demand;

3. The above-mentioned data could be changed due to the designing improvement, please check the updated configuration when purchasing.

Application of YHZS25 mobile concrete batching plant

It is can applied to various construction sites like road surface, bridges, dams and airport, and also like architectural workings, concrete product plant and commercial concrete production.
