HZS150 concrete mixing plant

08/05/2014 Haomei concrete mixing plant 12

Competitive price and quality /Compact structure,reliable performance /Warranty: 12 Months /CE, ISO9001:2008 certificate

Description of HZS150 concrete mixing plant

On the basis of combining advantages of various foreign mixing buildings&stations and advanced technology, HZS150 concrete mixing plant adopts modular structure design, which maintains convenient installation& removal and safe, comfortable operation, with good mixing effect and high efficiency. Besides, it adpots PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintaining.

With fully-closed tower, aggregate conveying system and dedusting system can effectively reduce environmental pollution arising from dust and noise.

Our HZS150 Concrete mixing plant consists of material supply, batching system, mixing, electrical control system and steel structure. It is applied to building project, building ground and precast product factory Contact us for more information!

Main Technical Parameter of HZS150 concrete mixing plant

Type	Parameter
Productivity in theory	150m³/h
Mixer	JS3000
Total power	205KW
Maximum aggregate diameter	80mm
Aggregate feeding method	Conveyor belt
Aggregate bins volume	4x18m³
Aggregate weighing	2x4000kg ±2%
Cement weighing	1800kg ±1%
Fly-ash weighing	800kg ±1%
Water weighing	800kg ±1%
Additive weighing	60kg ±1%
Discharging height	3.8m
Overall dimension(during operating) (LXWXH)	58.5mX7mX12.9m
Total weight	77T
Control	Fully automatic central control
Cement silo(optional)	Required on clients' demand
Cement screw(optional)	Each cement silo equipped with one 219 screw

Main Component

HSpiral Conveyor Screw Conveyor Conveyor for Brick and Block

Features of HZS150 concrete mixing plant

Adopt combined structure and modular unit, convenient to install and remove;
• Mixing and aggregate lifting system adopt JS3000 double-shaft compulsory concrete mixer which offers high quality and efficient mixing;
• Aggregate batching system adopts PLD4800 concrete batcher which offers efficient and accurate measurement;
• Powder lot is electronic measured, highly accurate dosing;
•Water is flow-metering, simple and practical, highly accurate dosing.

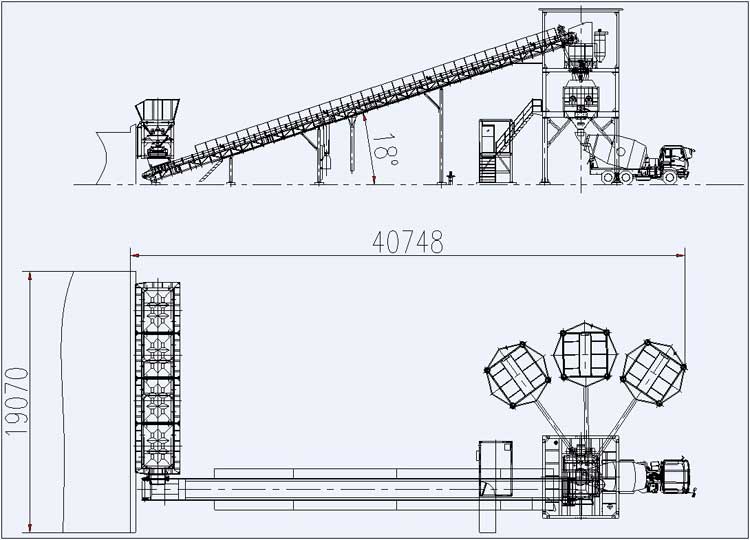

General layout of HZS150 concrete mixing plant

Please note of HZS150 concrete mixing plant

1. The total power doesn't include the power of cement screw;

2. Non-standard design could be made according to clients' demand;

3. The above-mentioned data could be changed due to the designing improvement, please check the updated configuration when purchasing.

Application of concrete mixing plant

Available for many applications, this stationary concrete batching plant is widely used for water conservancy ,electric power, railroad, road, tunnel , the arch of bridge, harbor-wharf and the national defense-project etc..
