Portable Concrete Batching Plant

HaoMei YHZS series Portable Concrete Batching Plant includes YHZS25 (25m3/h) mobile concrete plant, YHZS60 (60m3/h) mobile concrete plant, YHZS75 (75m3/h) mobile concrete plant etc. If you use belt conveyor to feed aggregates into the mixer continuously, the mixing efficiency is highly improved.

Definition of Portable Concrete Batching Plant

The Portable concrete batching plant is composed of material suppy, weighing, mixing and electric control system, with the optimized design of the concrete batching plant, it can be overall transferred and moved by the towing vehicle. It is widely used in larger than medium-sized mobile projects, like water and electricity, roads, airports, etc.

We offer concrete batching plants with various sizes,Such as YHZS25-25m³/h YHZS60-60m³/h YHZS75-75m³/h Portable Concrete Batching Plant.Contact us for more information!

Main Technical Parameter of Portable Concrete Batching Plant

Type YHZS25 YHZS35 YHZS50/60 YHZS75
Theoretical productivity (m3/hr) 25 35 50 75
Overall power (kw) 60 62 85 88
Power source (V/HZ) 380/50 380/50 380/50 380/50
Discharging height (m) 3.8 2.8 3.8 3.8
Overall weight (t) 20 20 24 27

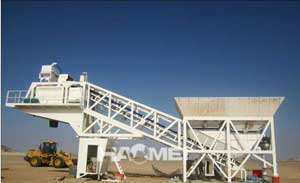

Product Images

Features of Portable Concrete Batching Plant

Portable Concrete Batching Plant is designed and developed especially for the users whose constructional project aim at shorting construction period, long construction line and frequent transition. The structure of mobile concrete mixing plant is compact, small floor area coverage, easy installation and high degree of automation. The movement function of mobile concrete plant is admirable.

Usages of Portable Concrete Batching Plant

Portable Concrete Batching Plant is widely used in road and bridge construction, architecture, water conservancy and construction of long term highway project.

As a China-based professional hopper concrete mixing plant manufacturer and supplier, we at Haomei also provide screw conveyor, concrete mixer truck, concrete block making machine, concrete batching plant and cement silo, etc. All our products are manufactured strictly according to the ISO9001 quality management system, resulting in reliable quality, so you can feel secure in choosing our construction machinery. Due to their reliable performance, our products are highly sought after by customers from Morocco, Yemen, Botswana, Libya, Zambia, Nigeria, and other countries. For more information about any of our products, please feel free to contact Haomei via email or at the contact addresses available on this website.
