ready mix concrete batching Plant and Concrete mixing plant in China-Haomei concrete mixing equipment

Ready mix concrete batching plant

08/08/2014 Haomei concrete batching plant 120

Thousands of Ready mix concrete batching plant in use worldwide

Ready mix concrete is concrete that is manufactured in a factory or batching plant, according to a set recipe, and then delivered to a work site, by truck mounted in–transit mixers. This results in a precise mixture, allowing specialty concrete mixtures to be developed and implemented on construction sites.

Ready mix concrete is used in the civil engineering and construction business, for example: bridge, free way, dam and buildings. There are mainly two types of concrete batching plants:

1 　Simple Type: Set up at the jobsite, after the project is completed, the plant can be removed to other jobsite.
2　 Professional Operating Type: Set up at industrial zone, for long-term operation.

We offer concrete batching plants with various sizes,Such as HZS25-25m³/h HZS35-35m³/h HZS60-60m³/h HZS50-50m³/h HZS90-90m³/h HZS120-120m³/h,HZS180-180m³/h Ready mix concrete batch plant.Contact us for more information!

Main Technical Parameter of Ready mix concrete batching plant

Type	HZS60	HZS90	HZS120	HZS180
Productivity (square / hour)	45~60	70~90	100~120	150~180
Mixier Type	JS1000	JS1500	JS2000	JS3000
Mixing Capacity (cubic)	1	1.5	2	3
Stone scale（kg）	1000	1500	2000	3500
Sand scale（kg）	1000	1500	2000	3500
Cement scale（kg）	600	800	1200	1500
Coal ash scale、mineral powderscale（kg）	300	450	600	800
Additive scale（kg）	20	30	50	80
Water scale（kg）	300	500	800	1000
Belt width（mm）	650	650	800	1000
Total power	130kw	170kw	220kw	280kw

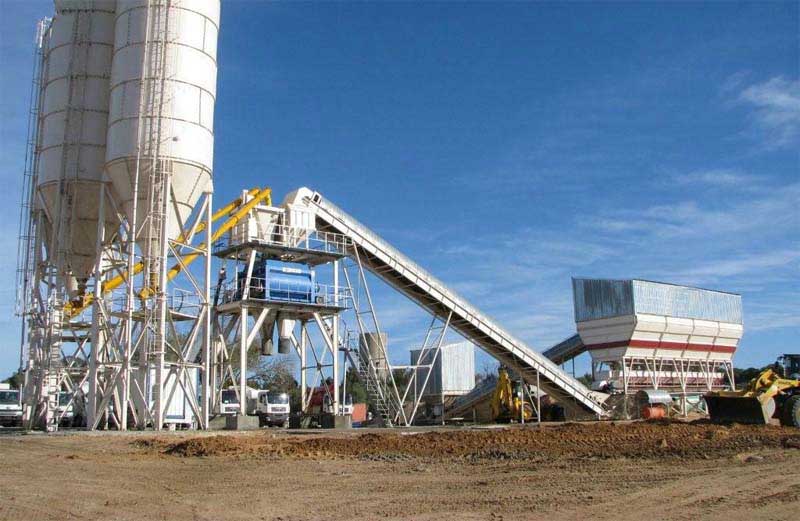

Product Images

Features of Ready mix concrete batching plant

1. Stability and Durability: adopting domestic and foreign advanced technologies;
2. Reliability: nearly 30 years of experiences in manufacturing concrete mixing plants;
3. Stationary modular structure, fast and easy to erect;
4. Double shaft forced mixer, excellent mixing performance with high efficiency;
5. PC+PLC control, vivid display on the screen, easy to operate;
6. Excellent environmental protection, dust collection system and anti-noise design.

Application of Ready mix concrete batching plant

Ready mix concrete batching plant are ideal equipments to produce commercial concrete, no matter to produce plastic concrete or to produce dry hard concrete, etc. It is suitable for big or medium building projects, road and bridges projects, precast concrete plants, etc.

The raw materials (sand, aggregate, cement) through automatic the mixing machine become ready-mixed concrete. To produce good quality of ready-mixed concrete, suitable machineries, skillful operators and professional management are necessary. Haomei has gained the international recognition for its expertise in Turn-Key projects, including planning, designing, manufacturing machineries and providing all necessary training consultant programs. The reasonable prices with professional services are Haomei’s competitive advantages in the international markets.
