Competitive price and quality
/Compact structure,reliable performance
/Warranty: 12 Months
/CE, ISO9001:2008 certificate
Description of HZS25 concrete mixing plant
HZS25 concrete mixing plant is one of the small-sized Batching plant series of HAOMEI company. It is semi-automatic concrete Batching block composed by feeding, batching, mixing, electrical control and steel structure components, suitable for small-scale construction projects, precast yard and commercial concrete companies.
We offer concrete mixing plants with various sizes,Such as HZS60-60m³/h HZS90-90m³/h HZS120-120m³/h,HZS180-180m³/h Belt Type Concrete Batch Plant.Contact us for more information!
Main Technical Parameter of HZS25 concrete mixing plant
Item |
Unit |
Parameter |
Max. Productivity |
m3/h |
25 |
Nominal capacity of mixer |
m3 |
0.5 |
Max Weighing Value of aggregate |
kg |
1500 |
Max Weighing Value of cement |
kg |
300 |
Max Weighing Value of water |
kg |
150 |
Max Weighing Value of additive |
kg |
40 |
Rating transport capacity of screw conveyor |
t/h |
35 |
Capacity of Cement Cabin |
t |
50 |
Mixing Power |
kW |
18.5 |
Hoist Power |
kW |
5.5 |
Power of Machine |
kW |
60 |
Weight of Machine |
t |
25 |
Outline Dimension(LxWxH) |
m |
15x8x14 |
Discharge Height |
m |
3.8 |
Aggregate measuring accuracy |
% |
≤2 |
Water measuring accuracy |
% |
≤1 |
Cement measuring accuracy |
% |
≤1 |
Additive measuring accuracy |
% |
≤1 |

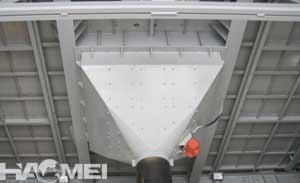

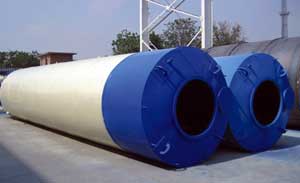

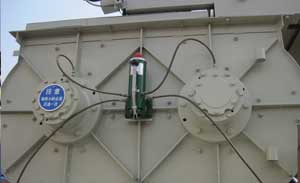

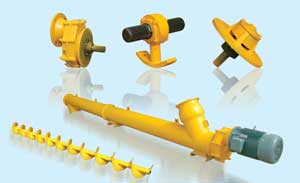

Main Component
Features of HZS25 concrete Batching plant
Adopt combined structure and modular unit, convenient to install and remove;

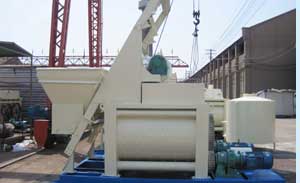

• Mixing and aggregate lifting system adopt JS500 double-shaft compulsory concrete mixer which offers high quality and efficient mixing;

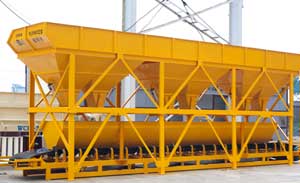

• Aggregate batching system adopts PLD800 concrete batcher which offers efficient and accurate measurement;
• Powder lot is electronic measured, highly accurate dosing;
•Water is flow-metering, simple and practical, highly accurate dosing.

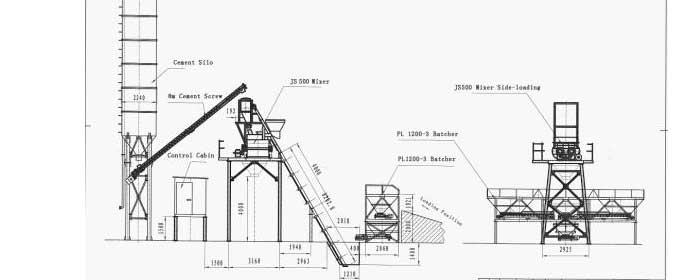

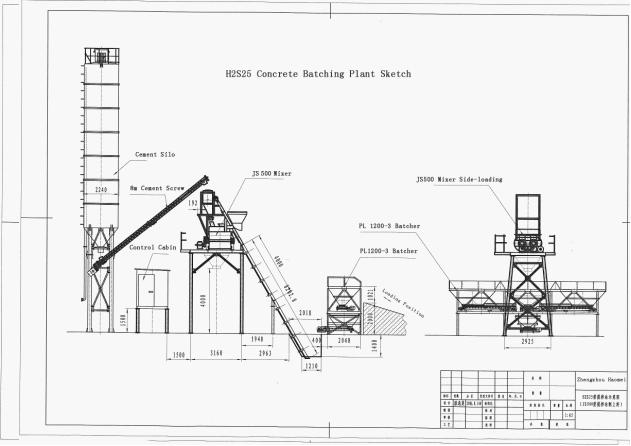

General layout of HZS25 concrete Batching plant
Please note of HZS25 concrete Batching plant
1. The total power doesn't include the power of cement screw;
2. Non-standard design could be made according to clients' demand;
3. The above-mentioned data could be changed due to the designing improvement, please check the updated configuration when purchasing.
Our HZS25 concrete batching plant have been sold to the countries are: Russia, kazakhstan, Pakistan, Bangladesh, Vietnam, Malaysia, brunei, the Philippines, east timor, Indonesia, Egypt, South Africa, Algeria, Nigeria, Iraq, the united Arab emirates, Saudi Arabia, yemen, Romania, Argentina, etc.
